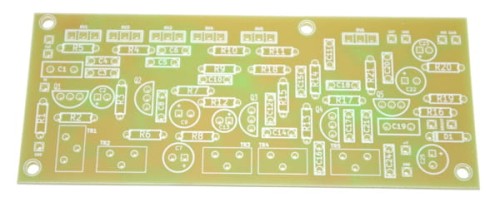

MARK IV PREAMP EMULATOR PCB
Availability:
in stock
Dispatched within:
24 hours
Product code:
685E-14326_20170119094639
Description
Field-effect transistors work in a similar way to triodes used to build preamplifiers for tube guitar amplifiers. Thanks to this feature, simulating tube preamps with JFETs (e.g. j201) has become very popular among designers and allows to achieve very good sound effects. Below is the Mesa Boogie Mark IV preamp emulator. It should be noted that the circuit has a correction before and not after clipping, which requires the use of an amplifier with its own correction, not the power amplifier itself.
PCB. Dimensions: 95mm x 40mm
Files to download:
